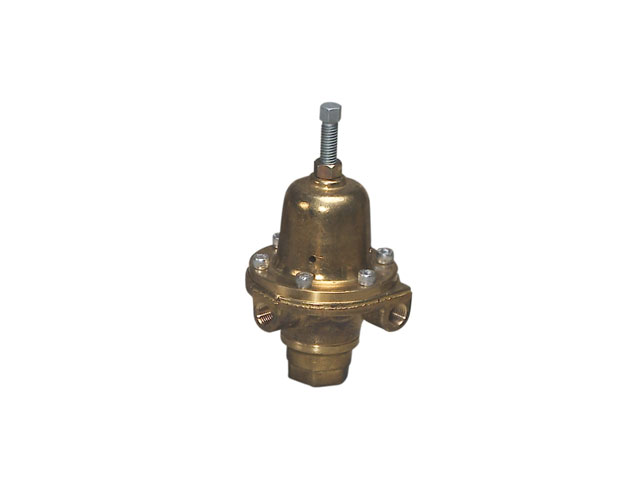

Line RP1301
The EPTA® RP1301 high pressure reducers are used in pressure reducing valves, control panels, control valves and instruments type fail close (FC) or fail open (FO), etc.
The pressure reducers, RP1301 EPTA®, are used when there is high inlet pressure (depending on the construction material) and a it is needed a high outlet of the fluid with a constant reduced pressure.
The reducers can have a heating chamber incorporated.
- Descripción
Descripción
| FEATURES | |
| Models | RP1301 |
| Variant | RP1301F
RP1301F/C – With heating chamber RP1301G RP1301G/C – With heating chamber |
| Type of Fluid | Gas |
| Standard Construction Materials | Body, lid and spring box: Forged brass or stainless steel.
Diaphgragm and nozzle: Stainless steel Seal Disk: PEEK Elastomer Seal: Nylon or Viton |
| Maximum Inlet Pressure | Body brass: 245 Bar(g) (max.)
Body stainless steel: 410 Bar(g) (max.) |
| Outlet Pressure Range | For variant RP1301F and PR1301F/C:
From 0,0 or 5,0 Bar(g) From 3,5 or 11,0 Bar(g) From 7,0 to 16,0 Bar(g) For variant RP1301G and PR1301G/C: From 14,0 to 24,0 Bar(g) From 20,0 to 40,0 Bar(g) |
| Temperature Range of the Fluid to Control: | From -20ºC to 80ºC
Higher Temperatures when required |
| Temperature Range | From-20°C to 60°C |
| Maximum Capacity Coefficient | With High Standard Nozzle Cg=5,4 / Cv= 0,14 / C1= 38,5
With High Flow Nozzle Cg=9,5 / Cv=0,24 / C1=38,5 |
| Diameter of Connections | They are all Ø ¼” NPT Female Thread |
