VM7600

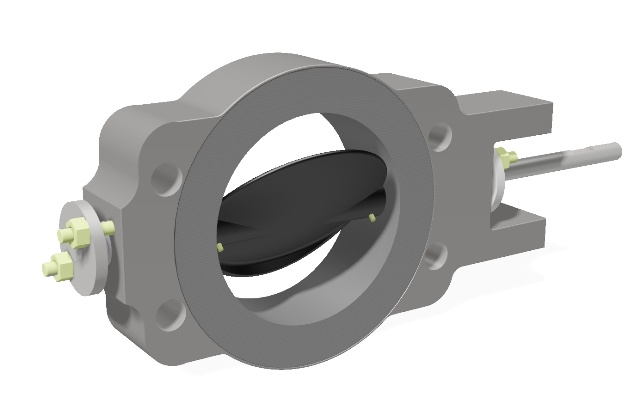

The VM7600 butterfly control valve of rotational flap type “Disc or Fishtail” with connections type WAFFER to be interlayered between flanges.
It can have free axis or normally with pneumatic actuator type AN656. This valve is commonly used in low difference pressure services.
It can be used as regulating or blocking valve in a wide variety of fluids.
- Descripción
Descripción
| FEATURES | |
| Actuator Type | AN656 (reverse or direct), size Nº 34, 45 y 46 |
| Body | VM7600 |
| Models | Butterfly VM7600 |
| Diameter of the body | Ø 2” to 14” |
| Control Characteristics | Approximately equal percentage (with fishtail) |
| Type of Inner Parts | Cap, giro de 90º |
| Type of Body | Type Waffer, to insert between flanges #150, #300 o #600 |
| Material of the Body | Molten Steel ASTM A216-WCC, Stainless Steel ASTM A351-CF8M and special alloys |
| Watertightness | Class II (standard FCI 70-2), for Class VI ask the Sales Department |
| Note | For low pressure differential applications, regardless the inlet pressure |
